DIY SE Stereo Power Amp Kit ELEKIT TU-8185 - No assembly

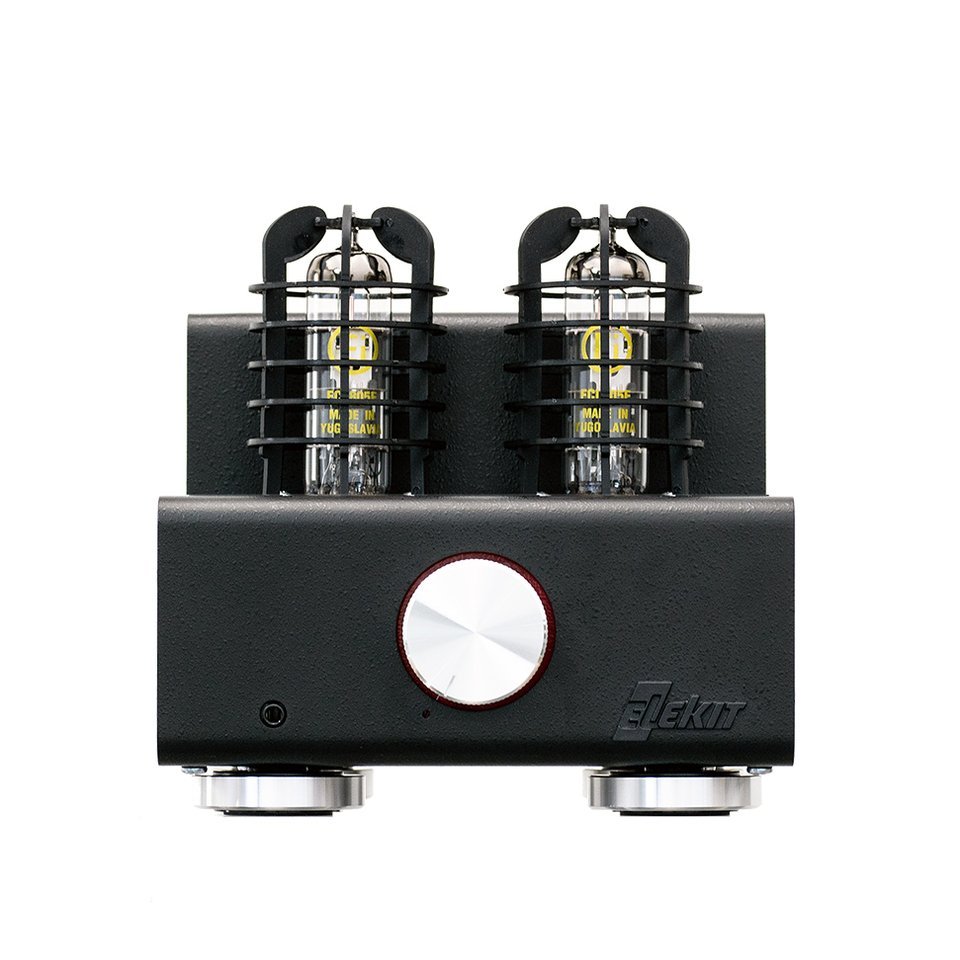

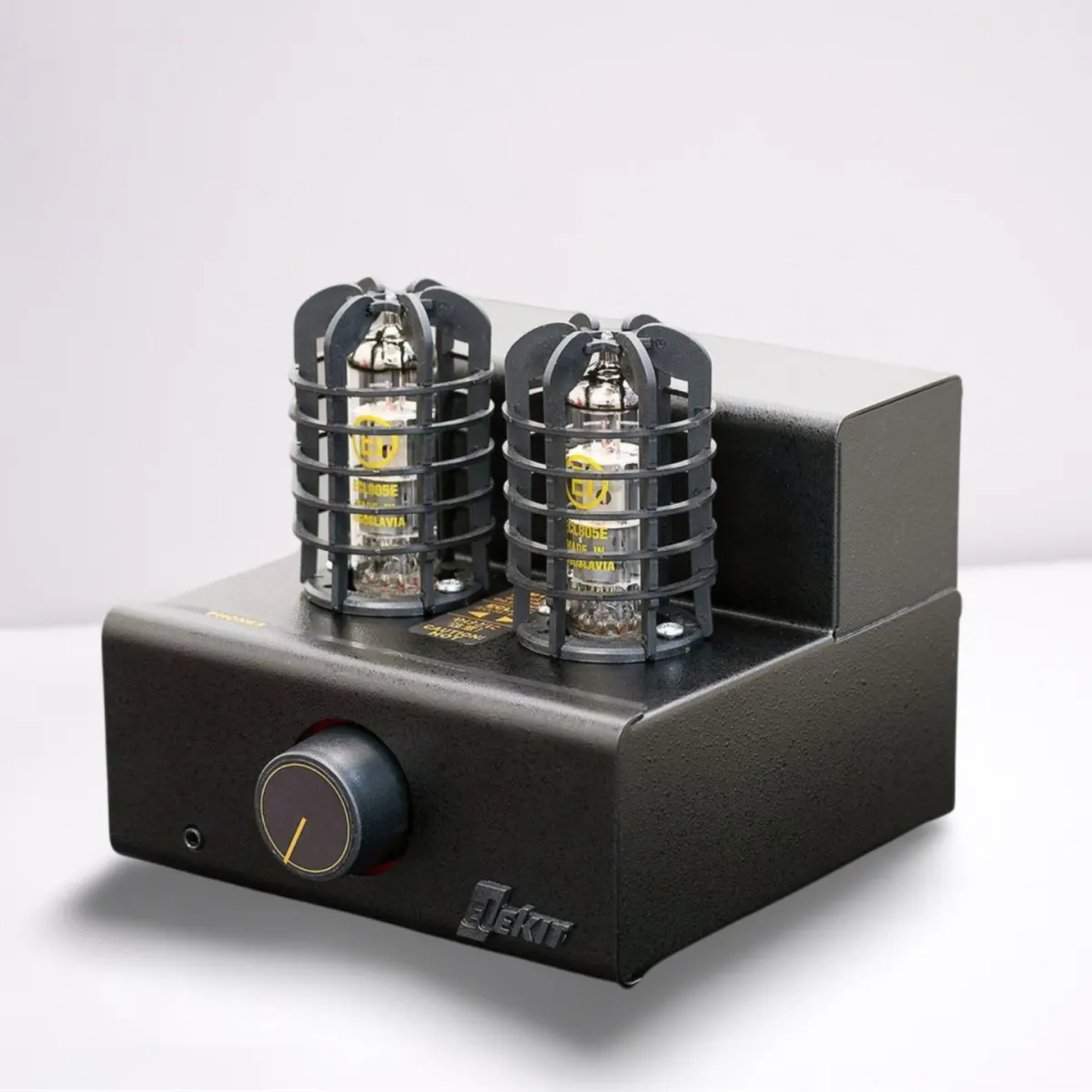

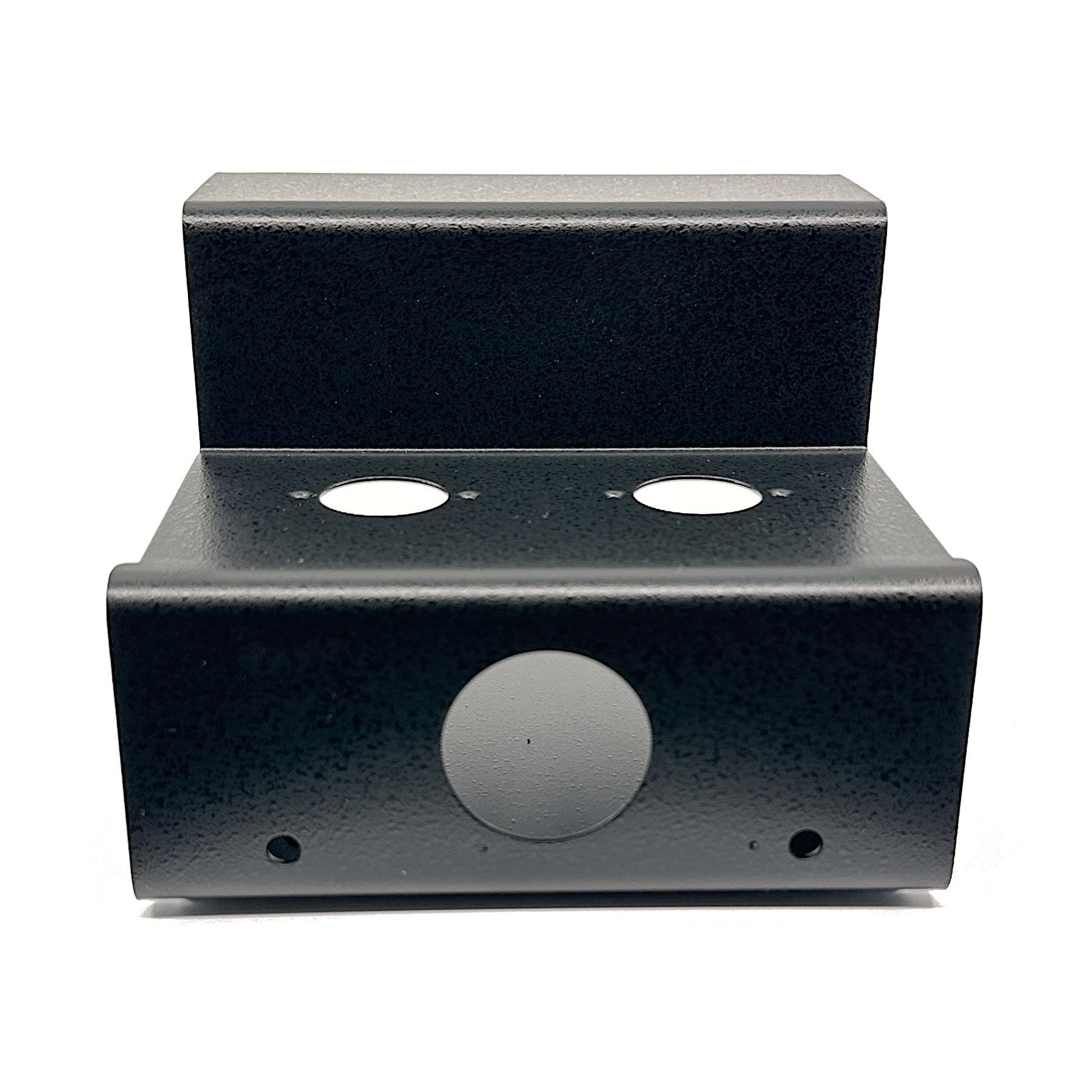

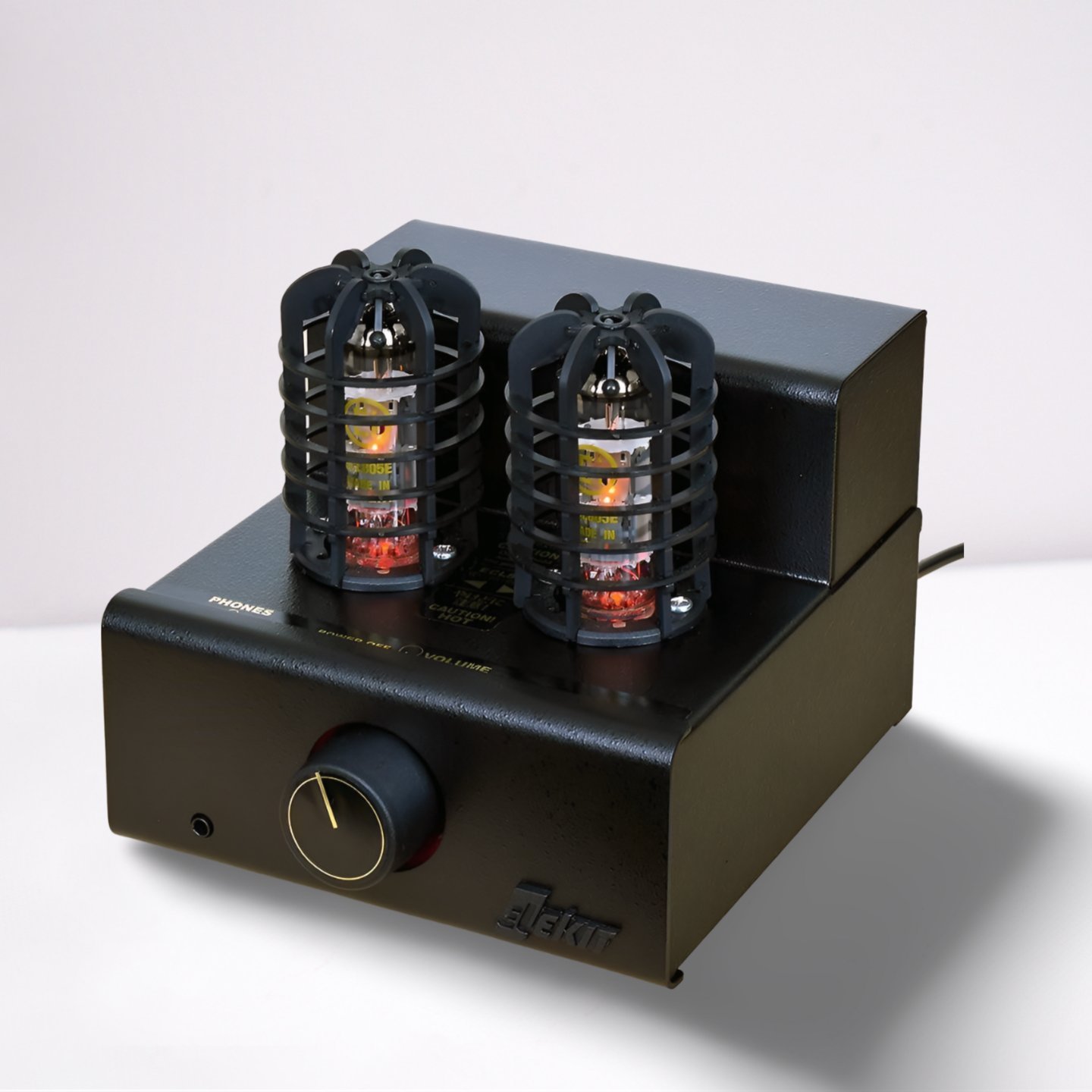

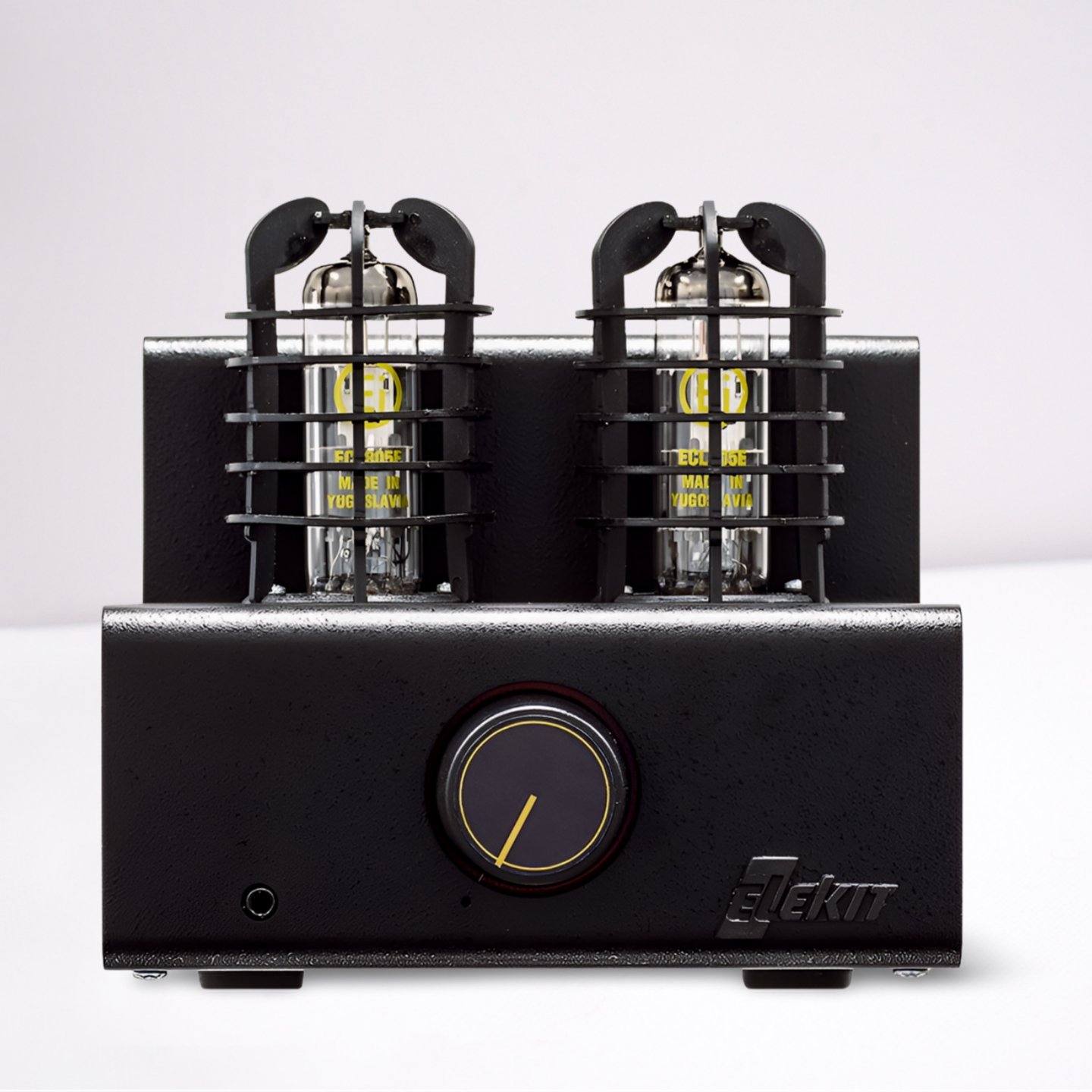

With a headphone jack built into the front panel and a compact chassis, you can enjoy full-scale sound through speakers or headphones alike. This model succeeds the TU-8100, adding minor refinements and a black enclosure. The amplifier is built around the well-known ECL85 (6GV8) tube for a genuinely tube-driven sound. Two inputs - RCA and a rear stereo mini-jack - let you connect a standard audio source, a phone, or a portable player. An optional PS-3249R USB-DAC module can also be fitted internally, adding a USB connection to a PC as a digital source. The front-panel headphone output means you're not limited to listening through speakers, and works with headphones rated between 8 and 600 ohms, with the output level selectable via jumpers.

Technical specification:

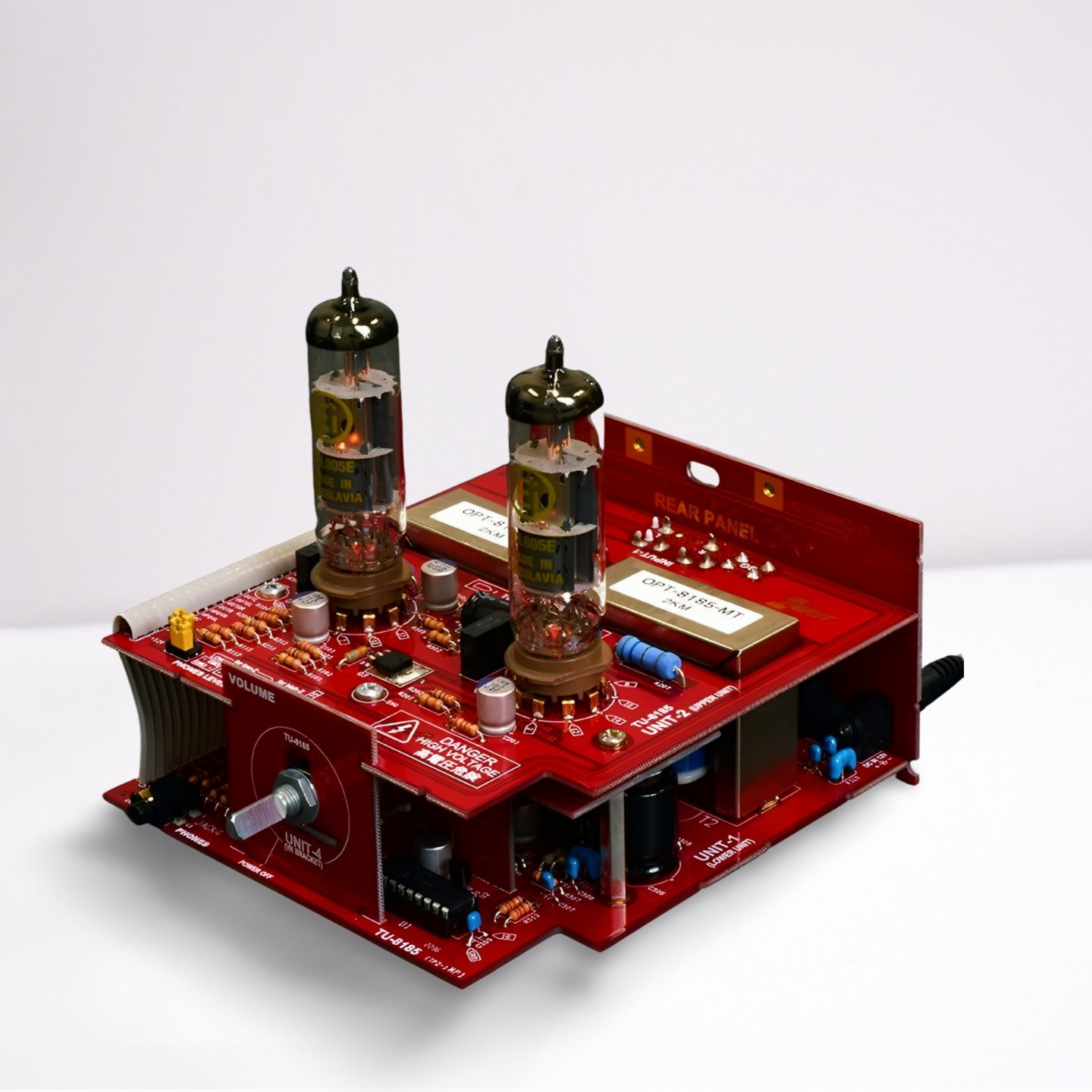

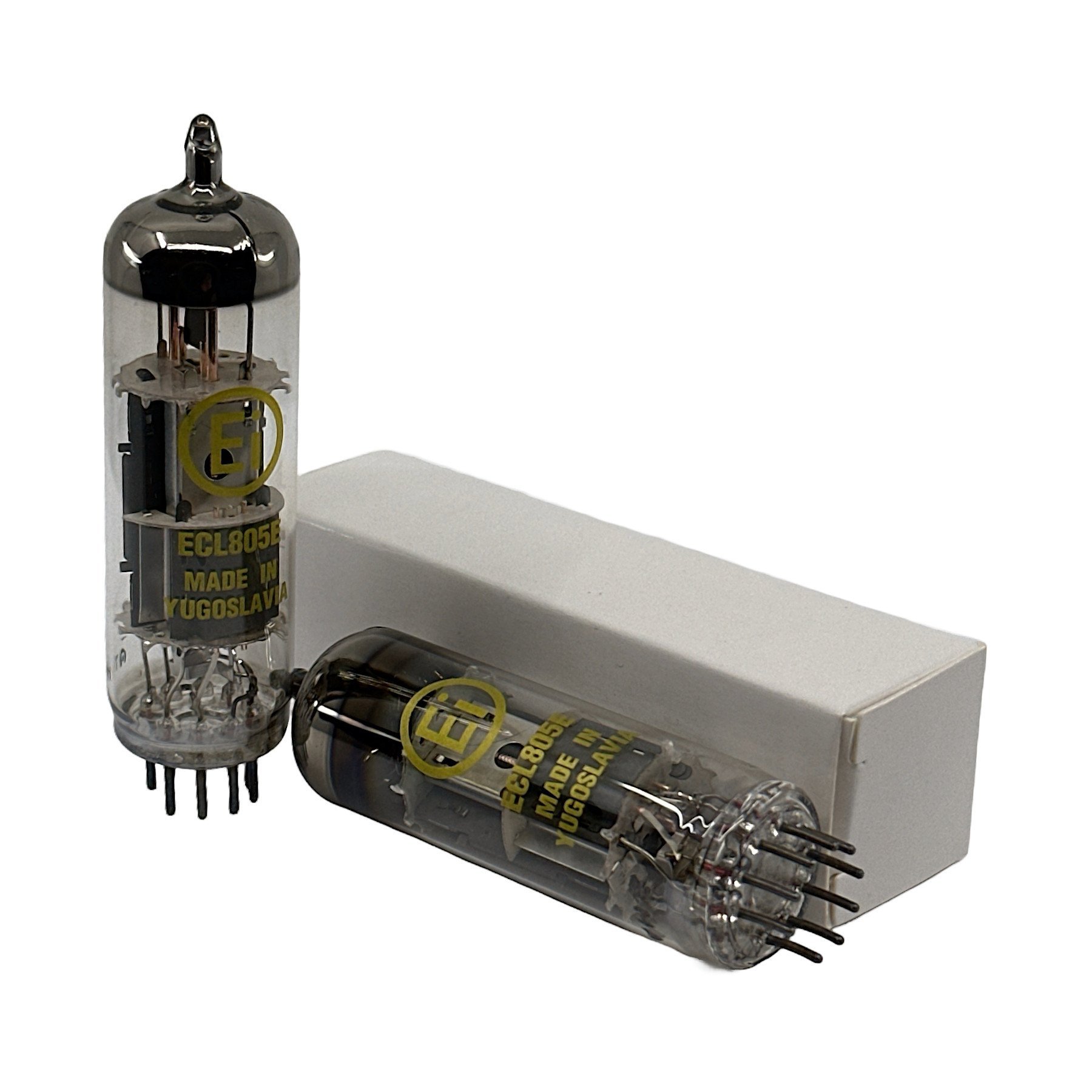

- VACUUM TUBES: ECL85 (6GV8) x 2
- RATED OUTPUT: 2 x 2W (8Ω load, THD 10%)
- RATED INPUT: 350 mV rms
- FREQUENCY RESPONSE: 25 – 50000 Hz (-3 dB)
- RESIDUAL NOISE: 35 µV rms (IHF-A 8Ω load)
- SPEAKERS IMPEDANCE: 4 – 8 Ω
- HEADPHONES IMPEDANCE: 8 – 600 Ω

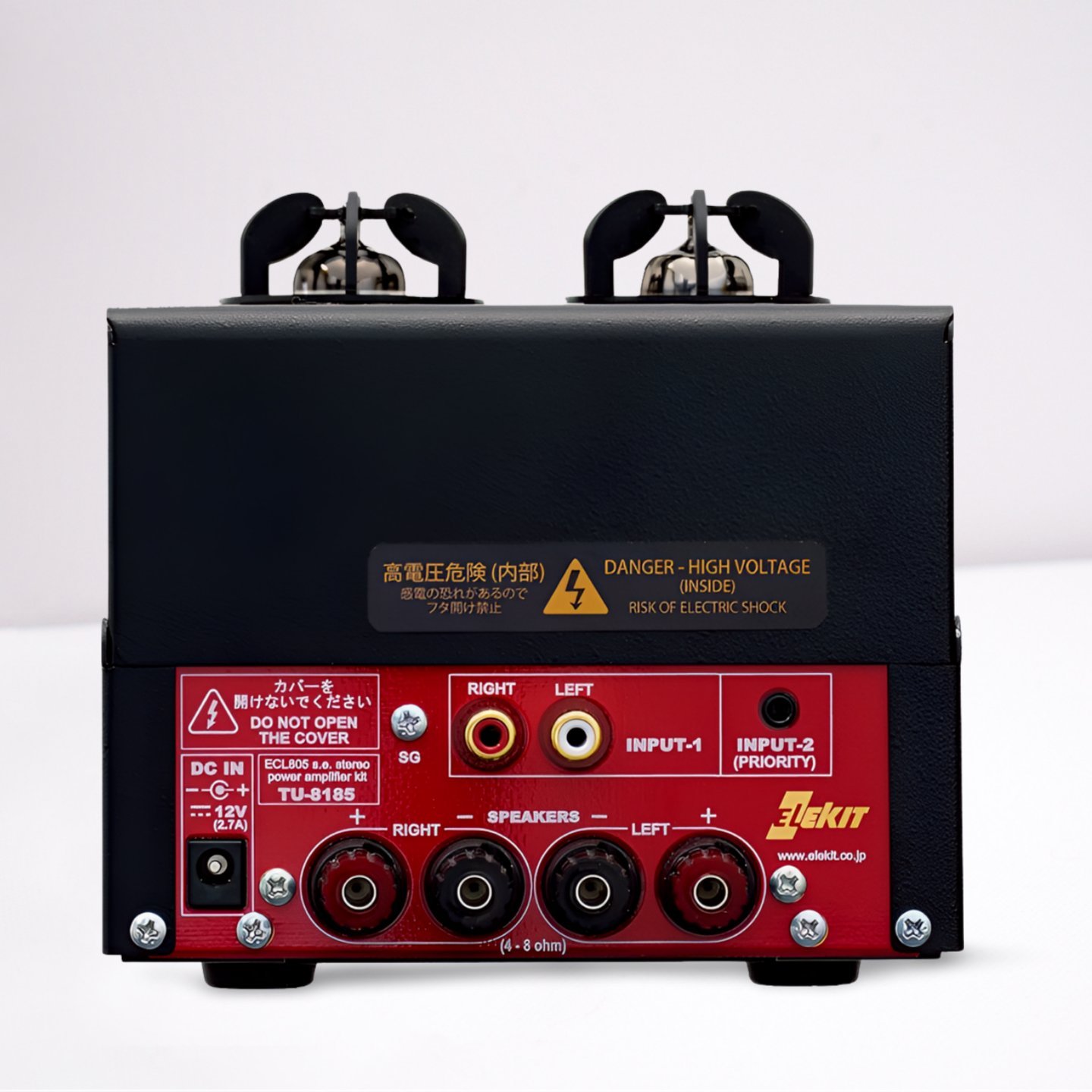

- OUTPUT TERMINALS: Binding terminals (banana plug usable)
- HEATER POWER: DC Heating
- B-POWER: DC-DC Inverter boost type
- SUPPLY VOLTAGE: DC 12V ~2,7 A
- AC ADAPTER: World compatible 100 – 240V / 12V @ 50 W switching power supply
- DIMENSIONS: W 142 mm x H 136 mm x D 178 mm, (including projections)
- WEIGHT: Approx. 1,8 kg, Assembled, excl. AC adapter

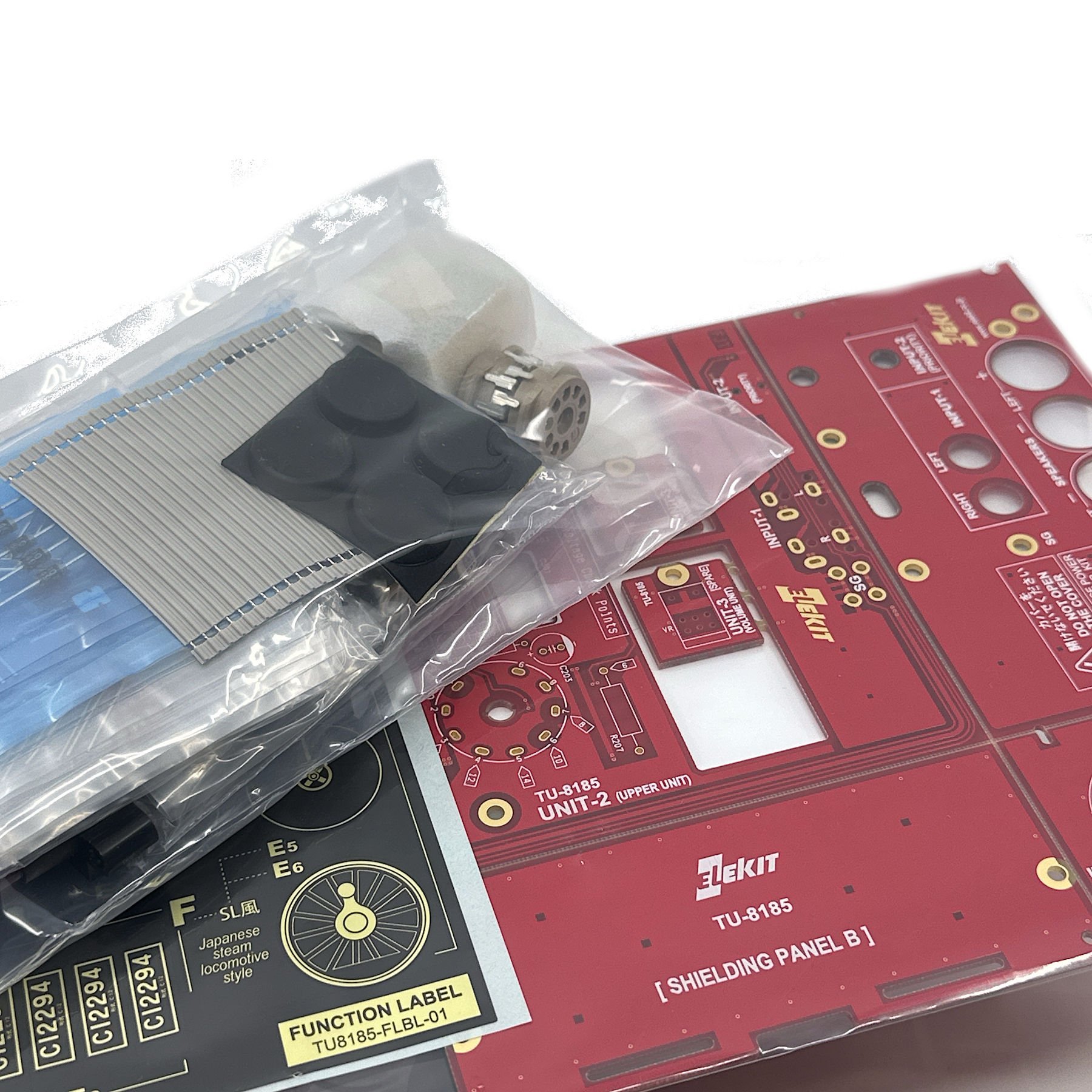

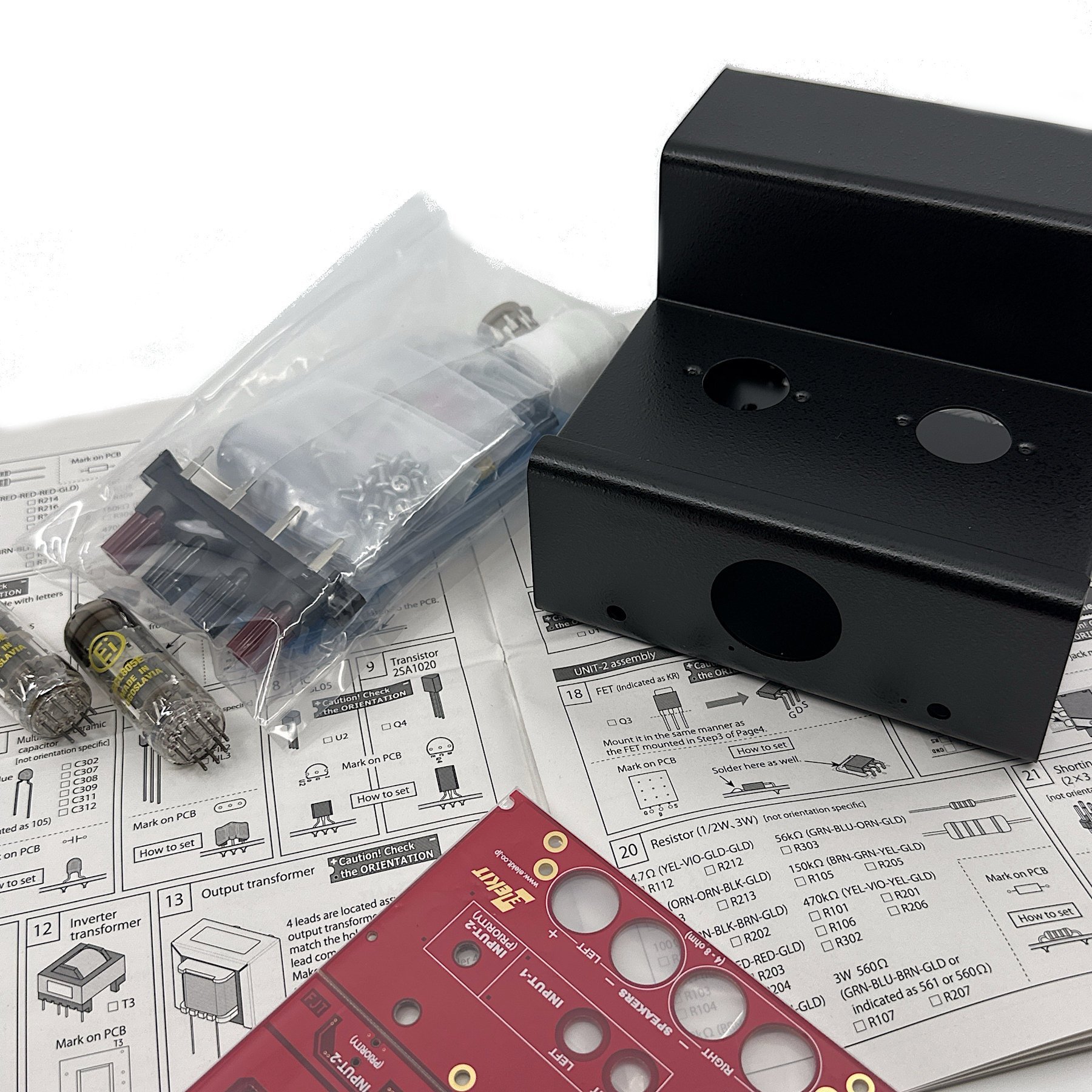

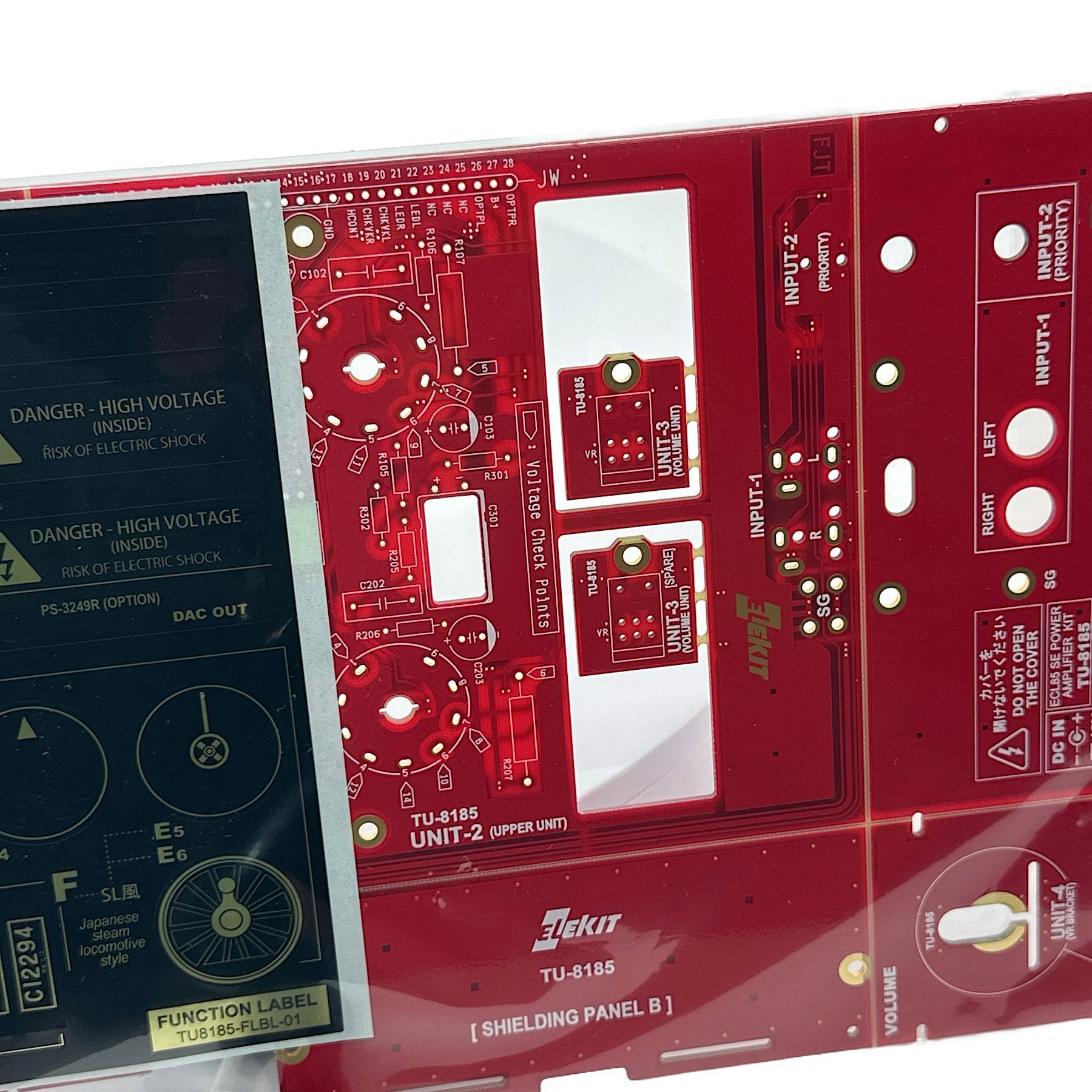

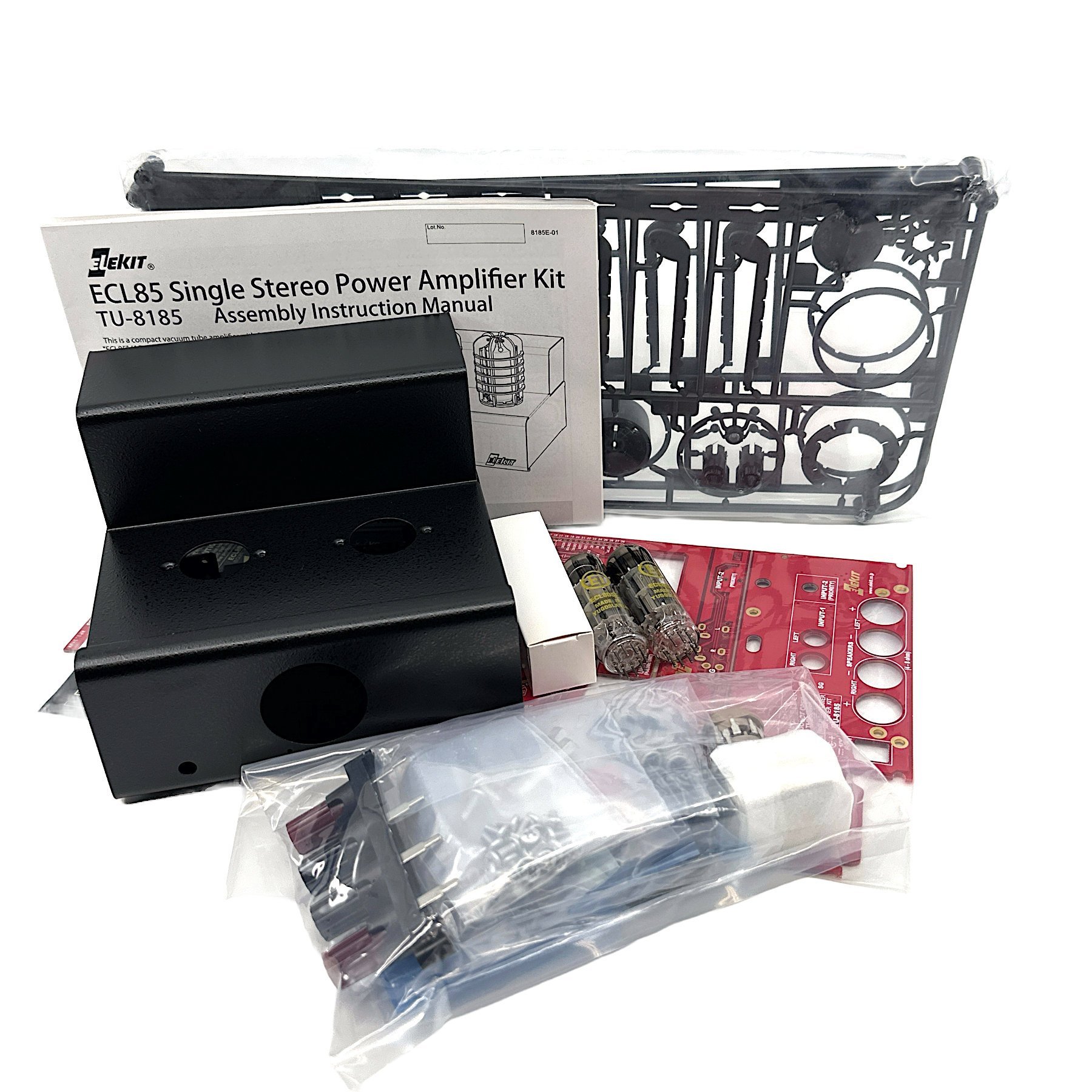

ELEKIT's tube and hybrid amplifier kits are aimed at people who want to understand and build the heart of their audio system with their own hands, not just buy it ready-made. The Japanese manufacturer provides a detailed, step-by-step assembly manual and a pre-etched, labelled PCB with every kit, so it can be assembled safely without any electronics background - most models only need a screwdriver and pliers, no soldering required. The finished amplifier's power, distortion and noise figures are documented by measurement, so you know exactly what to expect at the listening position. ELEKIT and its related accessory/upgrade kits (upgrade transformers, enclosures, replacement pots and knobs) form a modular system: a base amplifier kit can keep being improved years after purchase - for example with a better output transformer, a precision volume pot, or premium enclosure parts - without replacing the whole unit. This results in a system that keeps its value and can be expanded over time. Smaller accessories - enclosure parts, knobs, feet, pot replacements - typically bolt straight onto an amplifier you already own with nothing more than a screwdriver, so the look and feel of an older ELEKIT build can be refreshed without touching the internal circuitry at all.

ELEKIT's Japanese DIY audio kits have been known for decades for their precise manufacturing and well-documented, clearly explained assembly instructions - most models can be built in a few hours without soldering.

Package weight: approx. 3 kg. GTIN: 4952682108535.
