REDCATT | Mid-bass driver

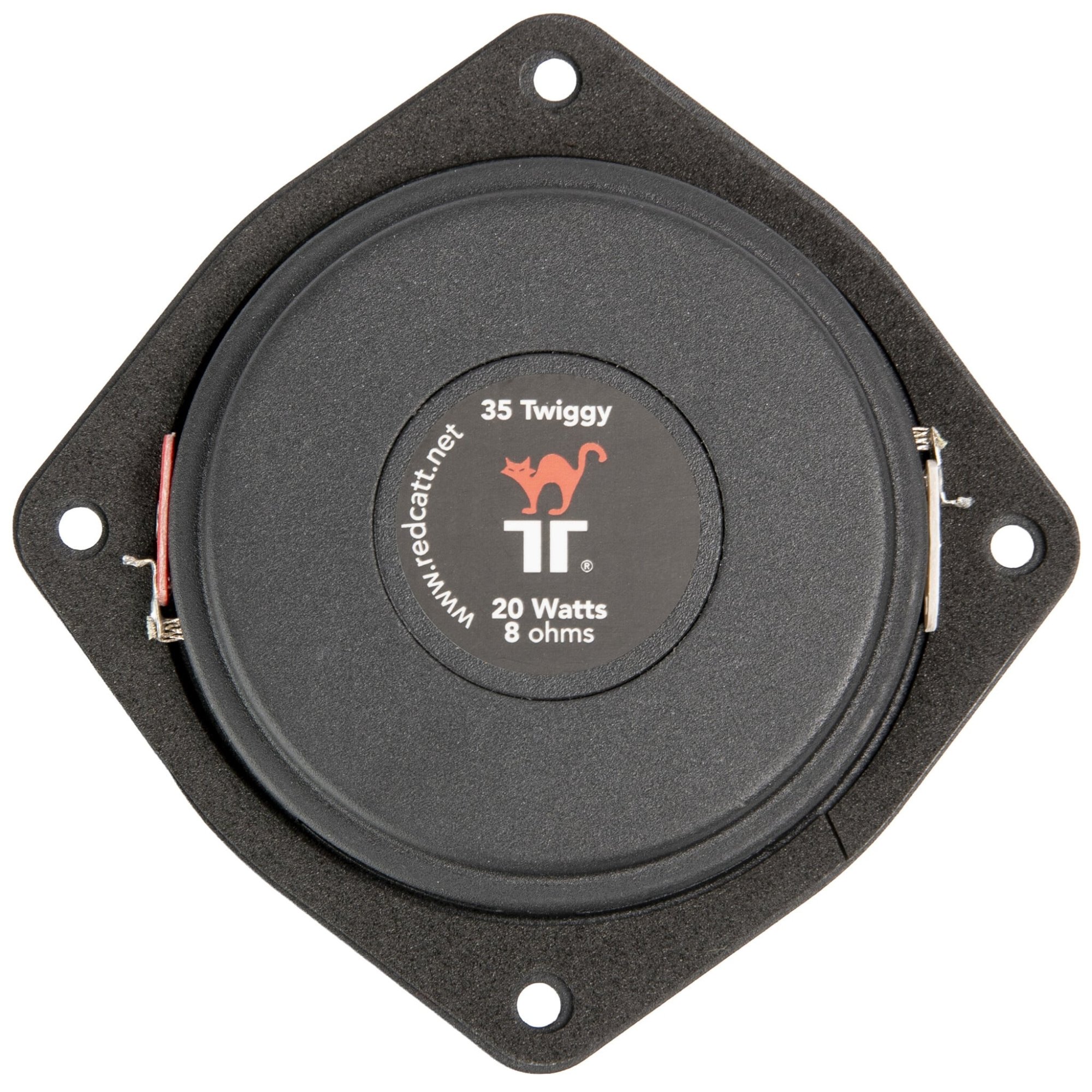

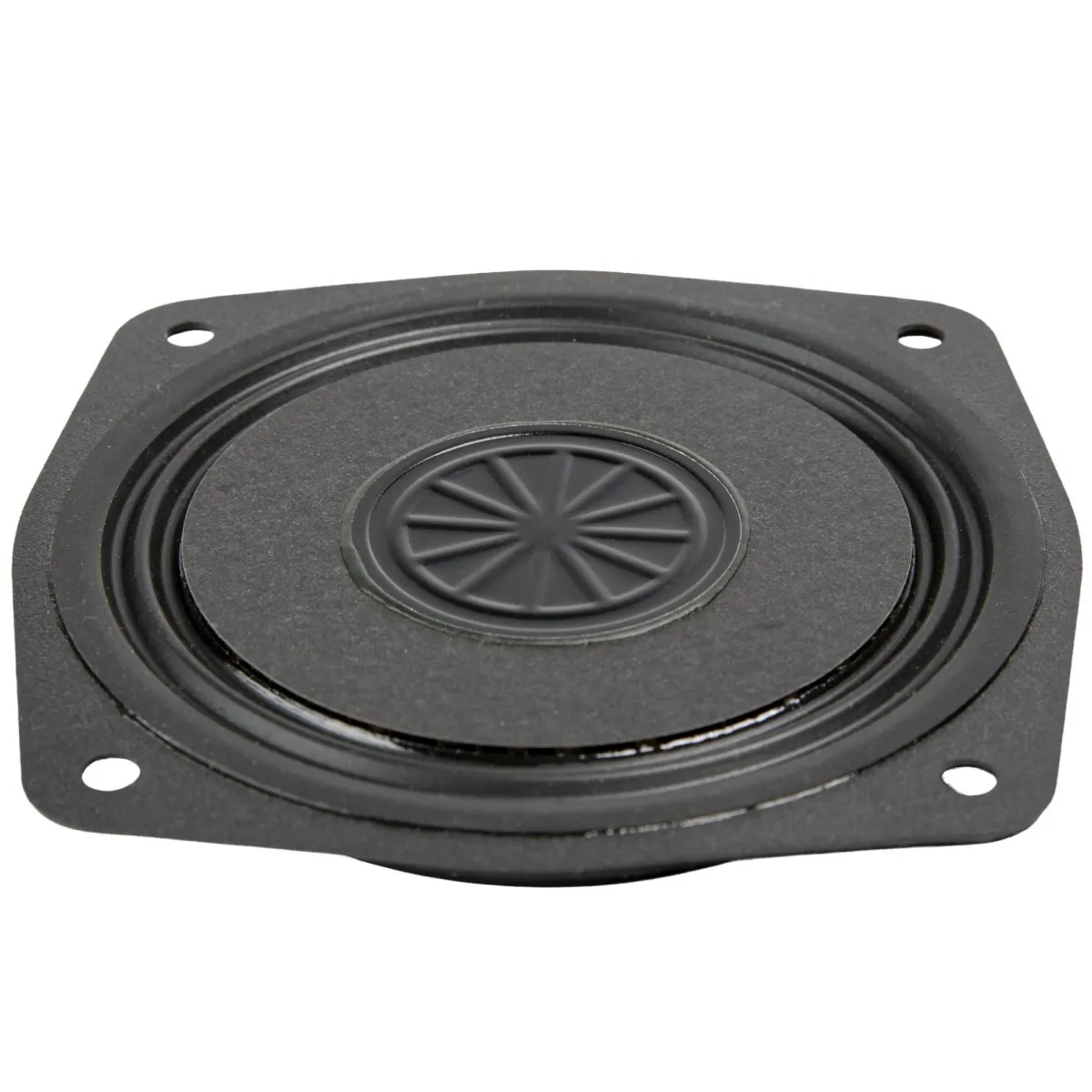

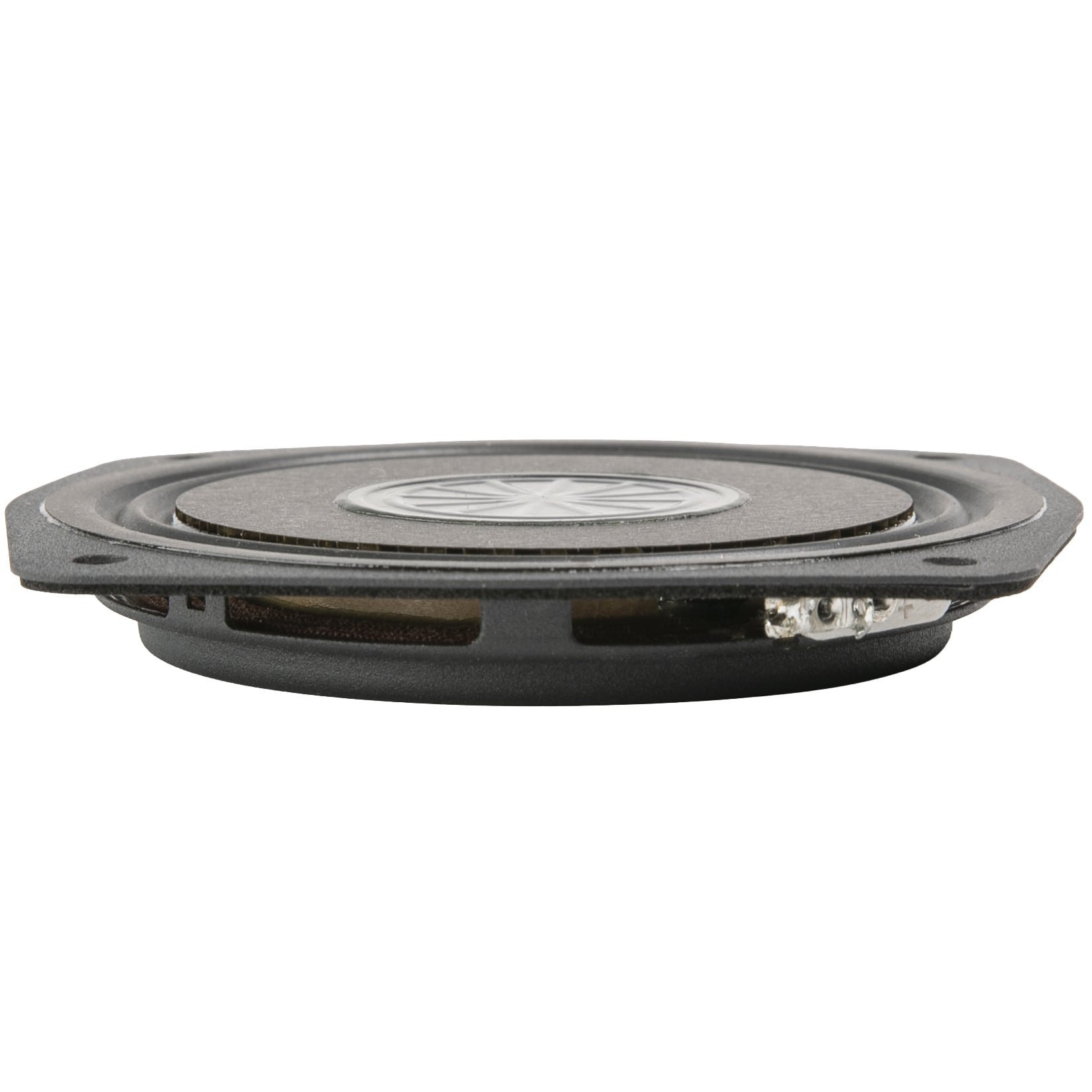

REDCATT Twiggy35 Mid woofer

Name: REDCATT Twiggy35 Mid woofer | HQ Audio Parts
Brand: REDCATT
SKU: Twiggy35
Price: 5990.00 HUF
Availability: OutOfStock

SKU: Twiggy35

90 mm 8 Ω

Professional speaker component. REDCATT Twiggy35 Mid woofer engineered for superior sound quality and reliable performance. Ideal for audiophile applications.

5 990 Ft

(4 717 Ft + VAT)

Own warehouse Out of stock

Külső raktár 2. Out of stock

Let me know when it's available!

We'll send you an email as soon as the product is back in stock.

Fast Delivery 2-5 working days

Secure Payment Barion & SSL protection

14 Days Exchange We take it back without question

Technical data

Nominal diameter	90 mm
Impedance	8 Ω
Resonance frequency (Fs)	145 Hz
Sensitivity (SPL at 1 m / 2.83 V)	83 dB
Maximum linear deflection (Xmax)	0.25 mm

Total Q (Qts)	1.25
Electromagnetic Q (Qes)	1.75
Mechanical Q (Qms)	4.38
DC resistance (Re)	7.3 Ω
Voice coil inductance (L_e)	0.19 mH
Equivalent volume (Iron)	0.6 l
Voice coil diameter	33 mm
Depth	101.5 mm
Load capacity	10 W

Tags

Új termékek

The REDCATT Twiggy35 Mid woofer is a professional speaker component delivering superior sound quality and reliable performance. Precision engineering and premium materials guarantee smooth sound reproduction. Suitable for studios, concert halls, living rooms and professional audio systems. The component offers excellent frequency response, strong bass and clean highs. Chosen by audiophile enthusiasts and engineers alike.
